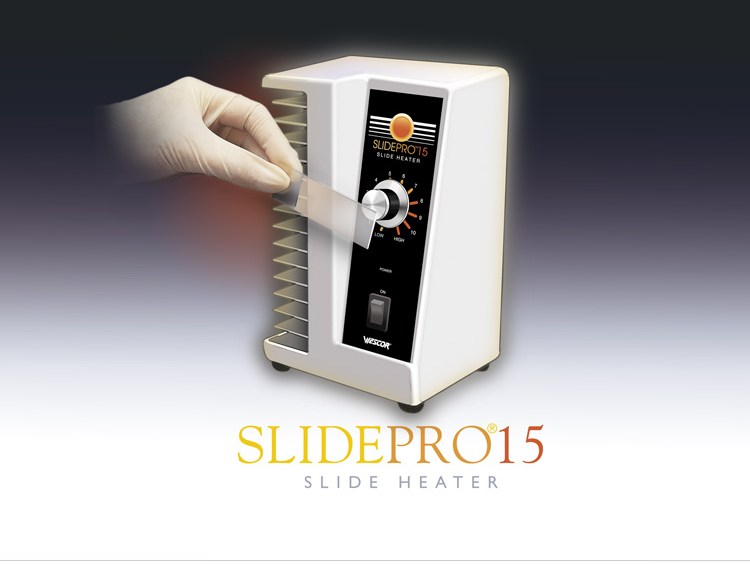

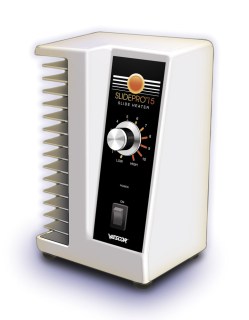

Wescor's new SlidePro 15 compact slide heater heat-fixes specimens to microscope slides for uniform fixation in preparation for staining.
The SlidePro's patented vertical stack design can hold up to 15 slides in a space-saving 4 x 5 inch (10.5 x 13 cm) footprint. This small size makes it the best slide heater available for use in a biological safety hood. Slides are easily inserted and retrieved and slide ID is visible at all times.
Temperature is maintained with a proportional electronic controller and can be set by the user to operate between approximately 40 to 100 °C with excellent temperature stability.
A handy thermometer port allows users to monitor temperature settings. This keeps calibration down time to a minimum.
The SlidePro 15 is easy to clean and maintain and will give many years of dependable service.
| Slide Heater Capacity | 1 to 15 slides (Vertically Stacked Configuration). |
| Dimensions (W x H x D) | 13 cm x 20 cm x 10.5 cm (5.1" x 7.85" x 4.12"). |
| Weight | 1.58 kg (3 lb. 8. oz.). |
| Temperature Adjust | Front panel dial adjustment. |
| Temperature Range | 40 to 100 °C. |
| Temperature Recovery | 3 Min. after fully loaded. |
| Temperature Indicator | Top panel access for a thermometer (.312" aperture). |
| Power Indicator | Front panel green power LED. |
| Power Control | Front panel rocker power switch. |
| Electrical Requirements | 100 to 120 volt or 220 to 240 volt @ 50 to 60 Hz. |
| Fuses | For 120 volt use a 3 amp Type T (1required). For 220 volt use a 2 amp Type T (1 required). |
| Power Consumption | 150 watts maximum. |
| Safety Features | Double fault electrical construction, shielded heater element, four non-skid rubber feet. |
| Certifications | UL listed under UL3101-1. |
