Aerospray Microbiology
Acid-Fast Bacteria (AFB)

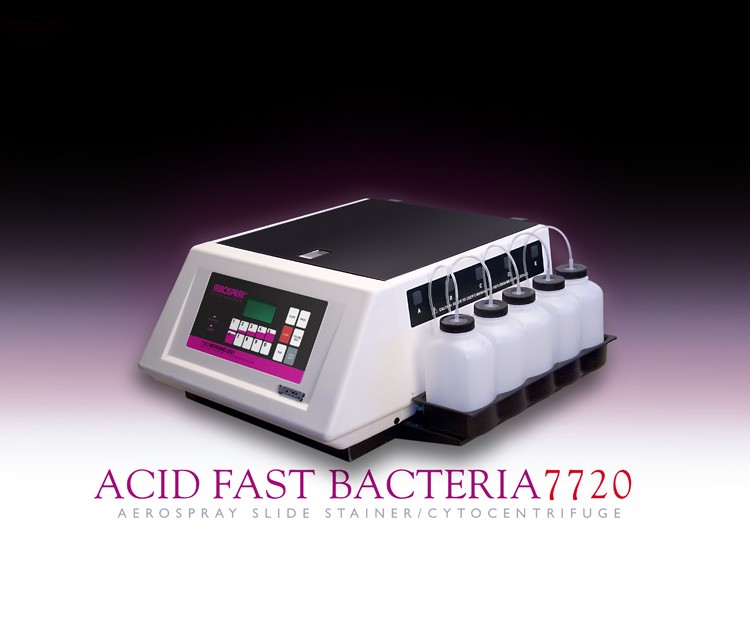

Model 7720
The Aerospray AFB Stainer stains microscope slides smeared with materials containing acid-fast microorganisms such as culture materials, body fluids, or exudates. Wescor reagents are tailored to give superb results in our Acid-Fast Bacteria Slide Stainer/Cytocentrifuge.
Never before has staining microorganisms been so easy, fast or economical. The Acid-Fast Bacteria Slide Stainer/Cytocentrifuge performs either carbol fuchsin or fluorescence procedures by exchanging reagents and selecting the appropriate program on the keyboard. Simply select from 6 different stain settings and start the staining cycle. That's all you have to do because the stainer takes over from there, precisely controlling all phases of the stain cycle with consistent reproducibility.
EconomicalThe Acid-Fast Bacteria Slide Stainer/Cytocentrifuge is exceptionally sparing in reagent consumption, giving you versatile full or partial load programming options that significantly reduce reagent volumes and cost required for staining different sized loads. An optional 30-slide carousel brings high volume economy within reach of every laboratory.
Every Aerospray is also a fully capable cytocentrifuge with the purchase of the optional Cytopro® rotor.
Rapid PerformanceWith a cycle time as short as 4.5 minutes, the Acid-Fast Bacteria Slide Stainer/Cytocentrifuge can process more than 150 slides per hour (up to 360 slides with the optional 30-slide carousel). No more waiting for slides to dry-they're ready to view when the staining cycle ends.
No Cross ContaminationIn all Aerospray stainers, fresh reagent is applied as an atomized spray on slides mounted in a rotating carousel. Specimens contact only fresh, precisely metered stain from separate spray nozzles. No cross contamination is possible.
Carbol Fuchsin Or Fluorescence Staining On DemandThe Acid-Fast Bacteria Slide Stainer/Cytocentrifuge can be configured for Kinyoun, Ziehl-Neelsen, auramine or auramine/rhodamine staining methods.
Optional Cytocentrifuge RotorOne of the greatest functions of the Wescor Aerospray stainers is their ability to be utilized as a cytocentrifugation instrument. For the cost of the optional Cytopro rotor, the Wescor Aerospray stainers becomes a full featured cytocentrifuge with an 8 slide capacity and keyboard programmability at a fraction of the cost of purchasing a stand-alone cytocentrifuge.
Aerospray® Microbiology Staining Process
Aerospray stains microscope slides smeared with materials containing acid-fast microorganisms such as culture materials, body fluids, or exudates. Wescor reagents are tailored to give superb results in the Aerospray stainer.
The Aerospray stainer provides a choice of staining cycles ranging from 1 to 6, allowing you to compensate for thick specimens, or other possible variables.
FixationSpecimens are fixed according to traditional procedures prior to staining in the Aerospray.
Primary StainAt the beginning of the staining cycle, the slides are sprayed with the primary stain (carbol fuchsin or fluorochrome) that penetrates and stains the specimens. Excess stain is then spun off and washed away with deionized water to prevent precipitate formation.
Decolorizing
Acid alcohol decolorizer is then applied to remove the primary stain from the non acid-fast bacteria and surrounding debris. The decolorization is stopped with a water wash and a short spin.
CounterstainThe counterstain is then applied to stain the non acid-fast organisms. Excess counterstain is then removed with a water wash and a short spin.
DryingThe slides are spun at about 950 RPM for 45 seconds. This draws air through the machine and dries the slides. Slides emerge from the stainer dry and ready for the microscope. With its rapid staining cycle and high throughput capability, The Aerospray stainer is a convenient and cost effective way to stain mycobacteria.
Aerospray Microbiology Acid-Fast Bacteria Stainer/CytocentrifugeSpecifications Model 7720 | |
|
| |
| Slide Carosel Capacity | 12 or 30 Slides |
| Carousel Rotation Speed | Reagent application 20 RPM, Slide drying approximately 950 RPM |
| Cytocentrifuge Rotor Speed | Programmable, 100 to 2000 RPM |
| Display | 4 line by 16 character alpha-numeric LCD dot-matrix |
| Touch Pad Controls | 6 staining selections, 10 Numeric Programming Keys, Run, Stop, Clean, Prog, CytoCent, Volume Test |
|
Reagent Consumption
|
Ranges From 0.7 to 4.0 mL. Medium settings wil use 1 to 2 mL per slide |
| Operating Time | 3.7 to 10.6 minutes depending on system and settings |
| Dimensions (W x H x D) | 56 cm x 24 cm x 53 cm (22" x 9.5" x 21") |
| Clearance Height (lid open) | 58 cm (23") |
| Weight | 17.6 kg (39 lb) |
| Electrical Requirements | 100V, 120V, 220V, or 240V @ 50-60 Hz (user selectable), 75 watts |
| Drain Connection | Nipple on rear panel |
| Safety | lid interlock: Lid must be closed, and is locked down during operation |
| Cytopro Cytocentrifuge Rotor Cat. No. AC - 161 | |
|
|
|
| Capacity | 8 chambers / slides |
| Weight | 1.3 kg (2.75 lb) |
| Dimensions (Dia. x H) | 23 cm x 4.8 cm (9.0" x 1.875") |
| Buyer's Specifications The Acid Fast Bacteria Stainer shall be a Wescor Model 7720 Aerospray Microbiology Acid Fast Bacteria Slide Stainer/Cytocentrifuge or equivalent and shall apply stain using atomizing spray nozzles. The AFB stainer shall use fresh reagent for each stain application to avoid any cross contamination. The AFB stainer shall also be capable of cytocentrifugation with an 8 place sealed rotor. The stainer shall have 6 decolorizer settings to adjust decolorization for thin or thick smears. The stainer shall consume no more than 75 watts of electrical power and shall weigh less than 19 kg. |
|
Cytopro® Rotor
AC-160
The Cytopro Rotor allows you to turn your Aerospray® Stainer into a full-featured cytocentrifuge system. The Cytopro is truly simple to load and unload chambers and it is autoclavable for complete sterilization. You can also use this advanced rotor in most Shandon Cytospin systems with purchase of the Cytopro Rotor Adapter (AC-080).
Only Wescor's Cytopro rotor has these patented features:
- Compressed flow control ring in the Cytopad® yields the highest cell recovery in the industry.
- Automatic pad alignment. Parts snap together easily and correctly every time.
- Convenient pre-wetting port for increased and more consistent cell yields.
- Superior clamping mechanism for consistently reliable performance.
- Sample protection cutout for trouble free chamber removal.
- Smooth and positive push-lever chamber retraction.
- Fast and easy loading and unloading.
- Compact, lightweight rotor for ease of handling, storing and transporting.
- Shallow rotor profile for easy access.
- Slide label visible during sample loading.
- Generous 7 mm sample display area (36% larger than the 6 mm Shandon Cytospin™ single).
- Internal clamping-no loose parts.
- Disposable/reusable chambers.
- Choice of fast or slow absorbent pads.
- Choice of single or double chambers each giving the same excellent results.
- Using the Wescor Hub Adapter (AC-080), the Wescor Cytopro rotor can be used on the Thermo Shandon Cytospin® 2, 3 or 4.
