NANODUCT

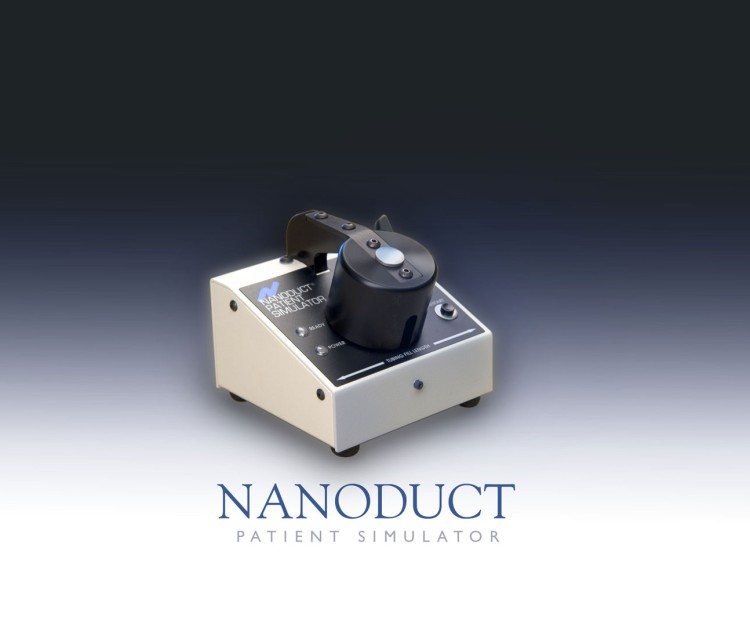

Patient Simulator
Neonatal Sweat
Analysis System
The Patient Simulator is a bench top accessory to the Nanoduct system that allows a liquid electrolyte solution to be introduced into a standard Nanoduct sensor. The solution is then warmed in the sensor and held at the temperature of a normal human during Nanoduct sweat testing.
The Patient Simulator allows laboratories to run liquid sweat sample for proficiency testing or comparative evaluation of liquid samples with Nanoduct and other instruments. Laboratories with CAP survey accreditation requirements can now use the Nanoduct Patient Simulator to assay simulated liquid sweat through the Nanoduct sweat testing system to meet CAP certifications.
Specifications for the Nanoduct Patient Simulator (Catalog # AC-111) |
|
| Power | 7.5 to 14 Volts. Currents less than .4 Amps during peak heating. Jack for external power supply: 12 V AC/DC adapter provided. Internal connections for two standard 9 Volt batteries (NEDA/ANSI 1604A). Auto shut off after 10 minutes. Can be extended by pressing RESTART button. |
| Temperature | Holds liquid sample at 31.5°C ±1°C. |
| Keyboard | ON, OFF switch and RESTART button. |
| Regulatory | Meets EN 61326 Standards for EMC compatibility. Meets IEC 60601 standards for safety. Manufactured under Wescor’s quality system (ISO 13485). Bears the CE mark as a Class IIa medical device. Certificate issued by BSI 0086. |
| Size | Approximately 11.43 cm x 10.92 cm x 11.43 cm (W x D x H) (4.5” x 4.3” x 4.5”). |
| Weight | Approximately 0.7 kg (1.5 lbs.). |
